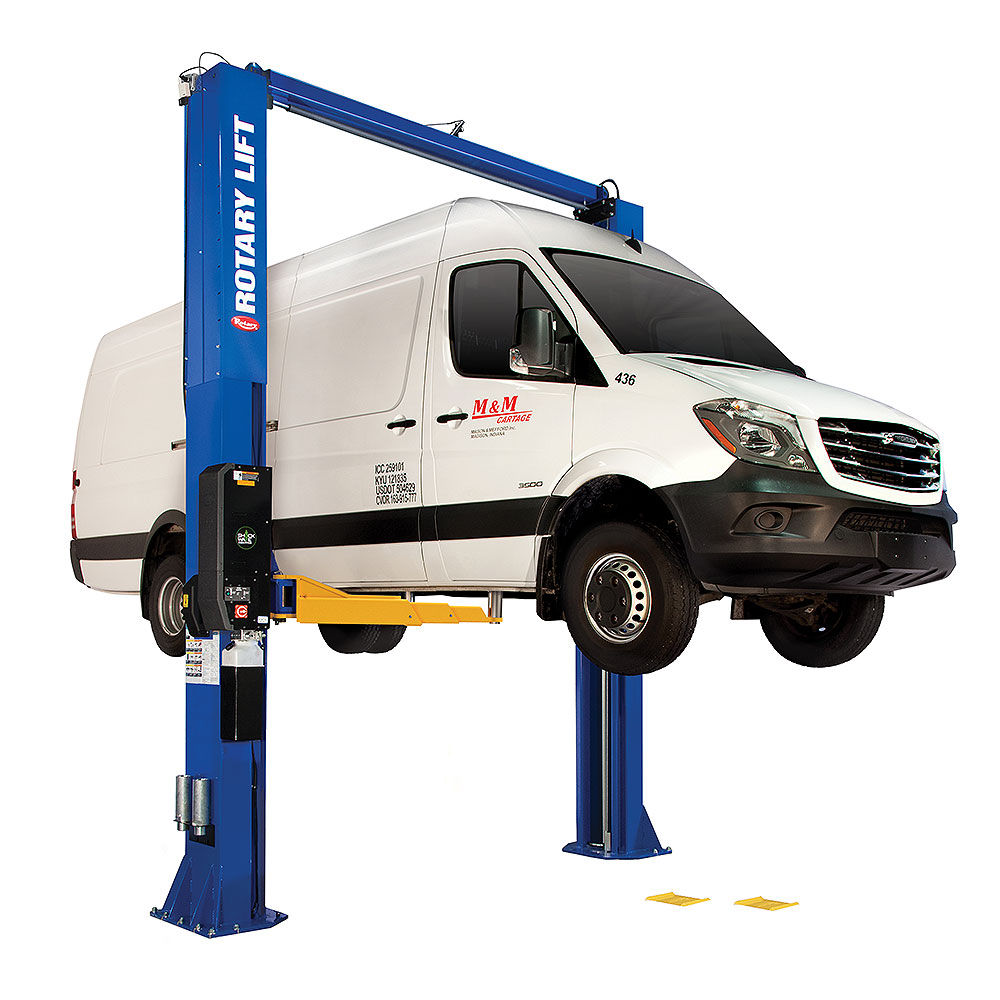

Two Post Lift – SPO16 | Symmetric Lift
SPO16 Cargo
Capacity: 16,000 lbs
PICK UP A GREATER VARIETY OF VEHICLES FASTER AND EASIER ALL ON ONE HEAVY DUTY 2-POST LIFT.
Packed with industry-leading features, the new SPO16 lift combines high capacity, a low profile stance, wider options, and extreme arm reach possibilities with patented lifting speed! All of Rotary’s award-winning features can be found on our heavy duty two-post lifts. With options like low ceiling and extended width models, you can rest assured we have a lift for your job. This is the one lift your shop can use to pick up anything that’ll roll through the doors. Don’t turn away customers and don’t turn away profits.
- Turn to a lift that’ll pick up class 1 through class 5 vehicles.
- Turn to cargo-specific three-stage arms so your technicians have spotting options.
- Turn to greater arm reach and service more with this versatile lift.
- Add Shockwave™ and turn heads with speed, 110-volt DC power and accurate spotting with laser guidance.
Service more through the door!
- Available with Shockwave™
- Original “Double S” Column Design
- Air Operated Lock Release
- ALI Gold Certified (SPO16X)
SPO16 Cargo
Specification
SPO16Cargo-Wide
SPO16Cargo-Standard
SPO16Cargo-Narrow
SPO16Cargo-Low Ceiling
Adapters
Truck / Optional Round Adapters
Truck / Optional Round Adapters
Truck / Optional Round Adapters
Truck / Optional Round Adapters
Capacity
16,000 lbs.
16,000 lbs.
16,000 lbs.
16,000 lbs.
Max. Load (per arm)
4,000 lbs.
4,000 lbs.
4,000 lbs. 4,000 lbs.
Rise*
80″
80″
80″
80″
Height Configurations
Available in height increments of 6″ between 15′ to 16’6″
Available in height increments of 6″ between 15′ to 16’6″
Available in height increments of 6″ between 15′ to 16’6″
Available in height increments of 6″ between 13’6″ to 14’6″
Required Ceiling Height
15’2″ – 16’8″
15’2″ – 16’8″
15’2″ – 16’8″
13’8″ – 14’8″
Overall Width
13’11”
13′ 5″
12′ 11″
See note *
Drive-Thru Width
117-11/32″
111-11/32″
105-11/32″
See note *
Inside Columns
132-15/32″
126-15/32″
120-15/32″
See note *
Front Arm Min/Max
34-11/16″ – 64″
34-11/16″ – 64″
34-11/16″ – 64″
See note *
Rear Arm Min/Max
34-11/16″ – 64″
34-11/16″ – 64″
34-11/16″ – 64″
See note *
Min. Adapter Height
5-31/32″
5-31/32″
5-31/32″
5-31/32″
Max. Adapter Height
8-1/32″
8-1/32″
8-1/32″
8-1/32″
Motor Shockwave 5 HP 5 HP 5 HP 5 HP Motor
2 HP
2 HP
2 HP
2 HP
Voltage with Shockwave 110V 110V 110V 110V Voltage
208v-230v
208v-230v
208v-230v
208v-230v
Full Rise/Decent Shockwave 60 secs. 60 secs. 60 secs. 60 secs. Time of Full Rise
81 seconds
81 seconds
81 seconds
81 seconds
Min. Bay Size
15’x30′
15’x30′
15’x30′
15’x30′
