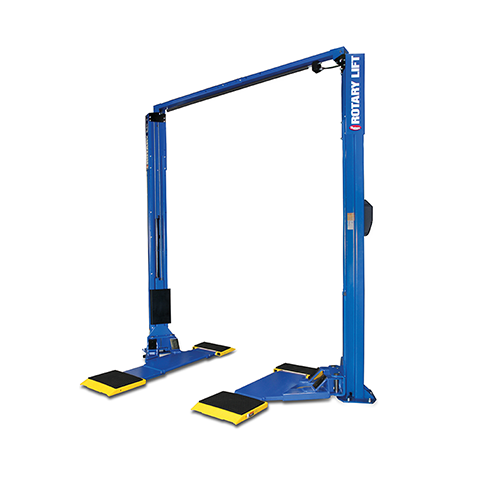

Two Post Lift – SPOA7 | Asymmetric Pad Lift
SPOA7
Capacity: 7,000 lbs.
The quick service pad lift includes time-saving features that help get your customers in and out fast with efficient, no-appointment-necessary maintenance and routine service. The ultra-low profile, easy to adjust pad minimizes drive-over clearance and allows vehicles to be spotted quickly, easily and accurately.
The standard SPOA7-MP two-post features true asymmetric, “Double S” columns for easy door opening and added strength, a padded overhead shut off bar and rugged, time tested construction.
And it’s only from Rotary Lift.
Make sure your lifts are Gold Certified!
It takes a combination of the right design, engineering excellence, and quality manufacturing to earn this certification. It is an extra assurance for you that your lift meets the highest industry safety and performance standards. Look for the Gold Label! Check out a complete listing of certified lifts at www.autolift.org.
Get The Quick Jobs In And Out With Our Quick Service Pad Lift!
- Adjustable Drive-Over Pad
- Asymmetrical Column Design
- Allows Vehicles To Be Spotted
- Shockwave Available!
- ALI Gold Certified (SPOA-7X)
SPOA7
Specifications
SPOA7-MP
SPOA7-MPSW
Adapters
Moveable Pad
Moveable Pad
Lifting Capacity
7,000 lbs.
7,000 lbs.
Lifting Capacity (per platform)
3,500 lbs.
3,500 lbs.
Rise
74”-77”
74”-77”
Width Overall
11’ 5 3/8”
11’ 5 3/8”
Floor to Top of Overhead Standard
11’ 8 1/2”
11’ 8 1/2”
Floor to Top of Overhead EH1
12′ 8 1/2″
12′ 8 1/2″
Floor to Top of Overhead EH2
13’ 8 1/2”
13’ 8 1/2”
Cylinder at Full Rise Standard
11’ 10 3/4”
N/A
Cylinder at Full Rise Extended Option
12’ 4 3/4”
12’ 4 3/4”
Width Between Columns
107” 1/4”
107” 1/4”
Floor to Overhead Switch
11’ 2 3/4”
11’ 2 3/4”
Drive Over Clearance
2 5/8”
2 5/8”
Drive-Thru Clearance
79”
79”
Outside of Pad to Outside of Pad
78 1/2”
78 1/2”
Inside of Pad to Inside of Pad
37 1/8”
37 1/8”
Pad Length Overall Retracted
70 13/16”
70 13/16”
Pad Length Overall Extended
86 13/16”
86 13/16”
Minimum Distance Between Pads
39 9/16”
39 9/16”
Maximum Distance Between Pads
55 9/16”
55 9/16”
Motor Performance
2 HP
5 HP
Voltage Single Phase
208/230v
110/120v
Speed of Rise
45 seconds
25 seconds
