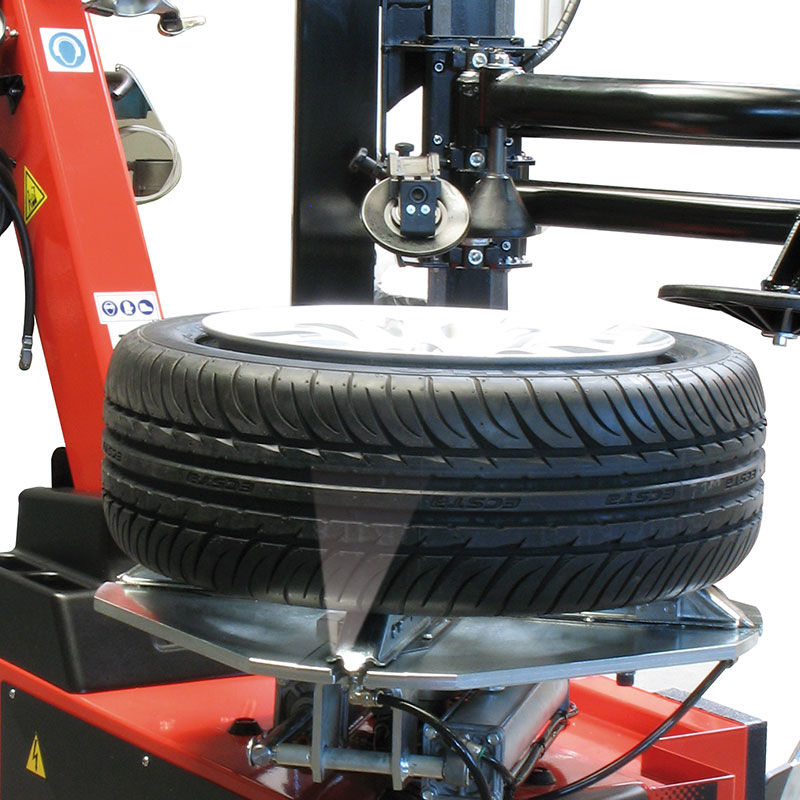

Tire Changer – R145DR | Tiltback VSC Tire Changer



R145DR



The R145DR is an automatic tire changer with an innovative electric motor inverter, which gives the ability to regulate the chucking table rotation speed to reduce the stress on the bead to avoid any damage to the tire. This tire machine is also equipped with the Fast Inflation (FI) configuration.



  •  Automatic Tire Changer
  •  FI Configuration (quick inflation for tubeless tires)
  •  220V power-driven motor
  •  Invemotor 0-16 Variable Speed Control
  •  Designed for Large and Wide Tires
  •  Shown with standard helper included
  •  Hand operated bead breaker handle



Download Brochure

Tire Changer – R145DR | Tiltback VSC Tire Changer

  • Technical Data

    R145D

    Motor

    180/260V (60Hz) / 1ph 0,75kW

    Maximum torque to chuck

    885 Ft/L bs (1200 Nm)

    Self-centring lock: external

    10”- 26”

    Self-centring lock: internal

    12”- 28,5”

    Tool working span

    8”- 32”

    Maximum tire diameter

    45” (1143mm)

    Maximum tire width

    17” (431mm)

    Bead breaker cylinder power at 145 psi

    6,745 lbs/force

    Power supply Motor

    220v / 1Ø / 60 Hz 1 Hp
