R146

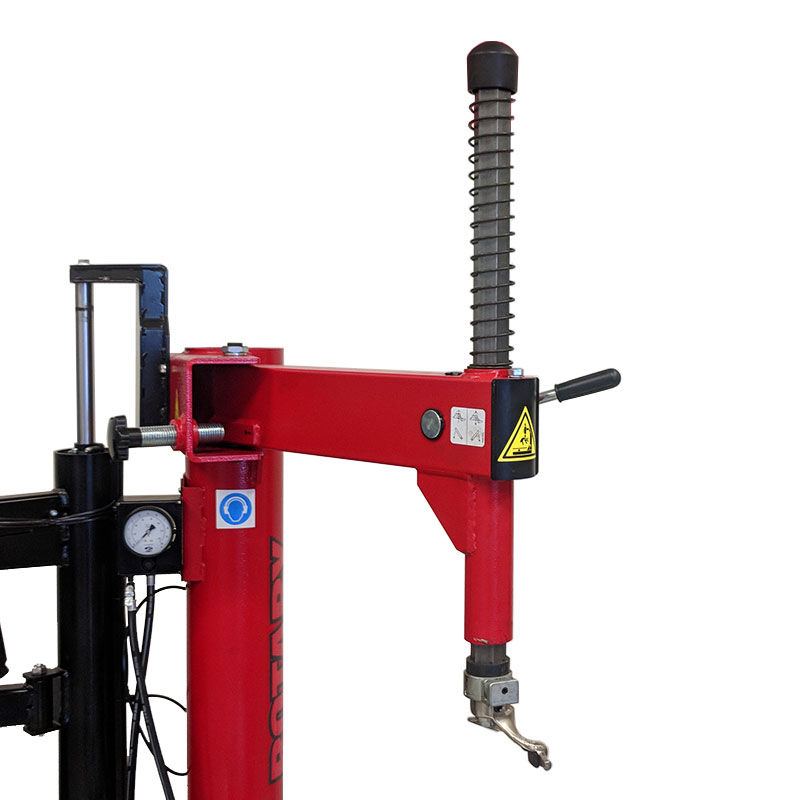

High performance swing arm tire changer for the high volume tire center. Exclusive 110v drive motor provides needed torque for handling today’s difficult assemblies. The large and reinforced frame adds greater rigidity to the structure and chucking table. The gear box is installed between two steel plates avoiding flex during operation. The extra height of the vertical post and tool shaft allow operation on tires to a maximum 15” (381 mm) tire width.

  •  High Performance
  •  High Volume
  •  Extra-Height Speedchanger
  •  110v Drive Motor Provides Needed Torque

Download Brochure

Tire Changer – R146 | Swingarm Pro Tire Changer

  • Technical Data

    R146

    External clamping

    10″ – 26″
    Maximum torque to chuck 885 Ft/L bs (1200 Nm)

    Internal clamping

    12” – 28.5”

    Max. tire diameter

    46” (1200 mm)

    Max. tire width

    15” (380 mm)

    Max. bead breaker opening

    15” (380 mm)

    Bead breaker cylinder power at 145 psi

    6,745 Ft/L lbs (3060 kg)

    Power supply

    110v / 1Ø / 60 Hz
