Tire Changer – R501Plus | Super Fast Truck Tire Changer



R501Plus



The patented operating system of the R501Plus tire changer is one of a kind. With this distinctive design, the changer is equipped with four rollers positioned on both sides of the wheel in diametrically opposite positions. With this system, the dismounting of the tire is a simple operation: while the front bead breakers keep the bead in the drop center, the rear breakers continue their course until the dismounting is complete.



  •  Super Fast Truck Tire Changer
  •  Dismount and mount a Truck Tire in 30 Seconds

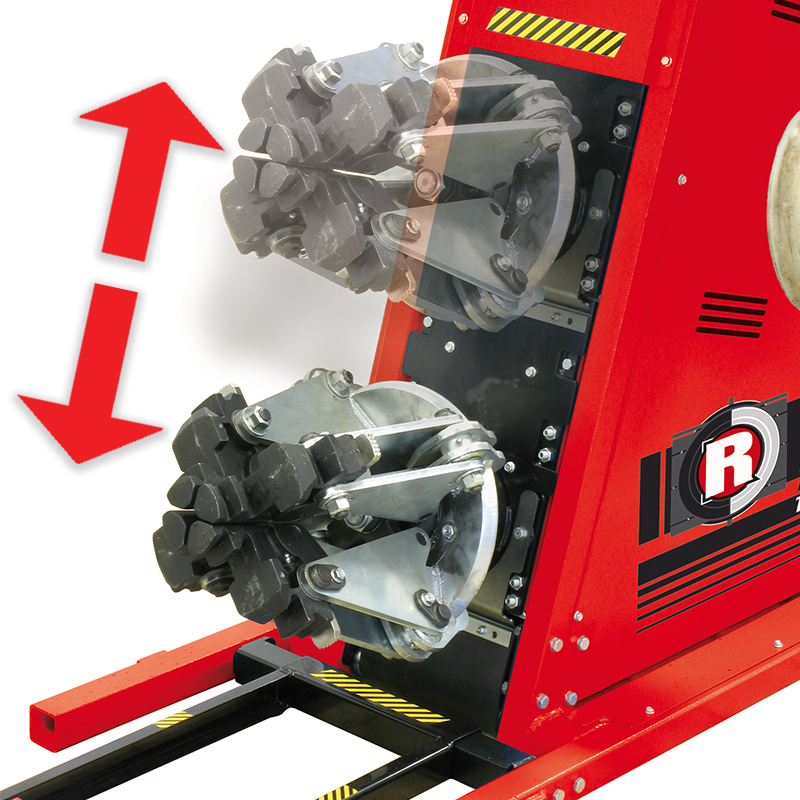

  •  Adjustable Arm Position
  •  Speed Mounting
  •  Speed Demounting
  •  Quick Loading



Download Brochure

Tire Changer – R501Plus | Super Fast Truck Tire Changer

  • TECHNICAL DATA R501Plus
    Chucking unit rotation motor kW 2
    Hydraulic drive unit motor 2 Hp / kW 1.5
    Maximum tire diameter 52” (1320mm)
    Max. allowed wheel width 21.2” (540mm)
    Weight 1,240 lbs / 562 kg
    Bead breaker power 18000 N
    Maximum wheel weight 2.645 lbs / 1200 kg
    Chuck rotation speed (rev/min) 8
    Max. torque to chuck 2600 Nm
    Power supply 220v / 3Ø / 60 Hz
